This week I replaced my front hatch window. They all need doing as they are 34 years old and have had the sword long ago . The front one got in early as it cracked some time ago when I bumped it with my knee and had been temp replaced with a piece of ply for some time. My windows are tinted perspex with stainless self tapers and though I admired Petes work I decided at least for the front hatch to replace as per the original setup except use Sika Pro instead of Silicon. Luckily the original came home with enough integrity to use as a template.

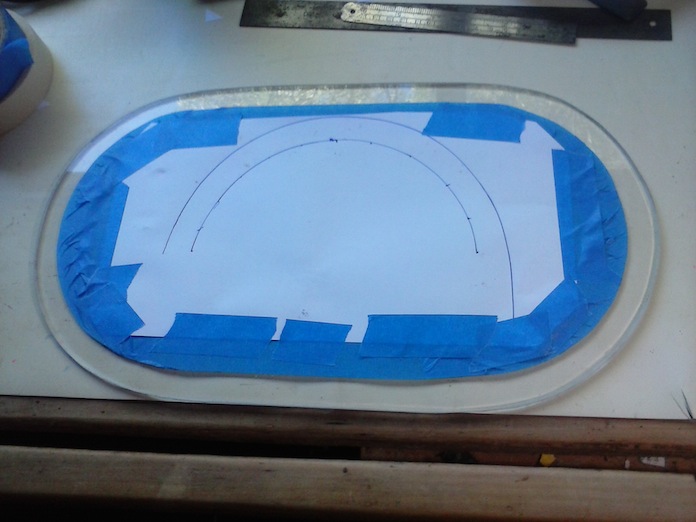

I already have enough perspex for the whole job I got for nothing from a mate who had used it on screen doors to stop damage to the lower sections at his office . It had been undercover and relatively unmarked so never look a gift GG in the mouth. First I cut it out using my renovator tool with the half round blade then masked up a surround to hide the glue

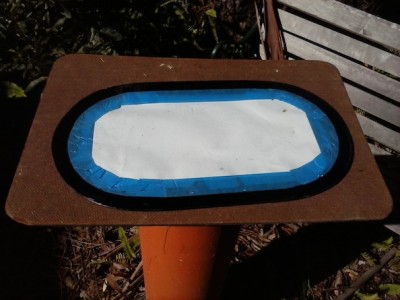

The round lines were my masking guide which I then blanked off the centre with. Then Spray using heatproof car paint I had at home as per Pete's suggestion
I left on the mask to keep the sika off the internals for the final inside sealing bead. I had to peg the corners with a small through stainless bolt to acheive the required bend and also put one in the bottom. Flipped the hatch and drilled from the inside with a very fine drill to define the screw points then closed the hatch and drilled just the perspex the other way with a drill just larger than the self tapers to stop cracking when they are tightened

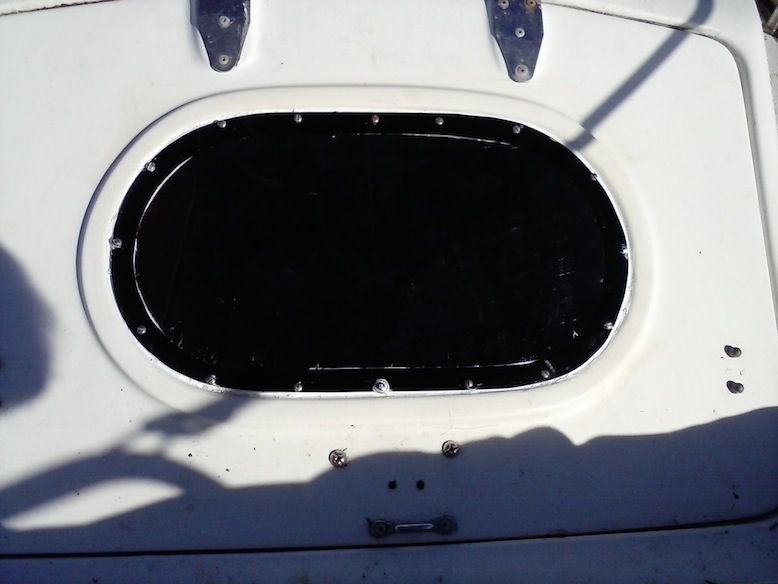

Final fit after all tape removed .... not quite as neat as Pete but nice and secure. Unfortunately you can just see the sika inside as I used the same mask for paint and bead but whatthehey I was always one for function over form. Next job is to add internal bracket for my 20w WWorth solar panel. which will be slightly masked by the round corners but will be out of the weather. It will be removable to come outside when Im on the boat and is why I am not going for tinted. When I get to the side windows I intent to mask fine slat lines onto the clear perspex which I've seen done and it looks very modern.
One more job done and a pleasant afternoon communing with the pelicans. Total cost $18 for a tube of Sikeflex Pro which will be used for the rest (keep it in the fridge) and the rest I had on hand. Annual haulout next month with the rest of the windows in my sights.
Tips.... be gentle with reno tool and drills ( low speed) and perspex is not too hard to work. Make sure your holes are oversized to stop cracking ....you cant self tap px it will shatter.
the window has a curve to it
